/* Save a few default AUX fields with information about the RDB generated. */
int rdbSaveInfoAuxFields(rio *rdb, int rdbflags, rdbSaveInfo *rsi) {
    int redis_bits = (sizeof(void*) == 8) ? 64 : 32;
    int aof_base = (rdbflags & RDBFLAGS_AOF_PREAMBLE) != 0;

    /* Add a few fields about the state when the RDB was created. */
    if (rdbSaveAuxFieldStrStr(rdb,"redis-ver",REDIS_VERSION) == -1) return -1;
    if (rdbSaveAuxFieldStrInt(rdb,"redis-bits",redis_bits) == -1) return -1;
    if (rdbSaveAuxFieldStrInt(rdb,"ctime",time(NULL)) == -1) return -1;
    if (rdbSaveAuxFieldStrInt(rdb,"used-mem",zmalloc_used_memory()) == -1) return -1;

    /* Handle saving options that generate aux fields. */
    if (rsi) {
        if (rdbSaveAuxFieldStrInt(rdb,"repl-stream-db",rsi->repl_stream_db)
            == -1) return -1;
        if (rdbSaveAuxFieldStrStr(rdb,"repl-id",server.replid)
            == -1) return -1;
        if (rdbSaveAuxFieldStrInt(rdb,"repl-offset",server.master_repl_offset)
            == -1) return -1;
    }
    if (rdbSaveAuxFieldStrInt(rdb, "aof-base", aof_base) == -1) return -1;
    return 1;
}

When a child rewrites the AOF file, if the following option is enabled
the file will be fsync-ed every 4 MB of data generated. This is useful
in order to commit the file to the disk more incrementally and avoid
big latency spikes.

void bgsaveCommand(client *c) {
    int schedule = 0;

    /* The SCHEDULE option changes the behavior of BGSAVE when an AOF rewrite
     * is in progress. Instead of returning an error a BGSAVE gets scheduled. */
    if (c->argc > 1) {
        if (c->argc == 2 && !strcasecmp(c->argv[1]->ptr,"schedule")) {
            schedule = 1;
        } else {
            addReplyErrorObject(c,shared.syntaxerr);
            return;
        }
    }

    rdbSaveInfo rsi, *rsiptr;
    rsiptr = rdbPopulateSaveInfo(&rsi);

    if (server.child_type == CHILD_TYPE_RDB) {
        addReplyError(c,"Background save already in progress");
    } else if (hasActiveChildProcess() || server.in_exec) {
        if (schedule || server.in_exec) {
            server.rdb_bgsave_scheduled = 1;
            addReplyStatus(c,"Background saving scheduled");
        } else {
            addReplyError(c,
            "Another child process is active (AOF?): can't BGSAVE right now. "
            "Use BGSAVE SCHEDULE in order to schedule a BGSAVE whenever "
            "possible.");
        }
    } else if (rdbSaveBackground(SLAVE_REQ_NONE,server.rdb_filename,rsiptr) == C_OK) {
        addReplyStatus(c,"Background saving started");
    } else {
        addReplyErrorObject(c,shared.err);
    }
}

int rdbSaveBackground(int req, char *filename, rdbSaveInfo *rsi) {
    pid_t childpid;

    if (hasActiveChildProcess()) return C_ERR;
    server.stat_rdb_saves++;

    server.dirty_before_bgsave = server.dirty;
    server.lastbgsave_try = time(NULL);

    if ((childpid = redisFork(CHILD_TYPE_RDB)) == 0) {
        int retval;

        /* Child */
        redisSetProcTitle("redis-rdb-bgsave");
        redisSetCpuAffinity(server.bgsave_cpulist);
        retval = rdbSave(req, filename,rsi);
        if (retval == C_OK) {
            sendChildCowInfo(CHILD_INFO_TYPE_RDB_COW_SIZE, "RDB");
        }
        exitFromChild((retval == C_OK) ? 0 : 1);
    } else {
        /* Parent */
        if (childpid == -1) {
            server.lastbgsave_status = C_ERR;
            serverLog(LL_WARNING,"Can't save in background: fork: %s",
                strerror(errno));
            return C_ERR;
        }
        serverLog(LL_NOTICE,"Background saving started by pid %ld",(long) childpid);
        server.rdb_save_time_start = time(NULL);
        server.rdb_child_type = RDB_CHILD_TYPE_DISK;
        return C_OK;
    }
    return C_OK; /* unreached */
}

/* Produces a dump of the database in RDB format sending it to the specified
 * Redis I/O channel. On success C_OK is returned, otherwise C_ERR
 * is returned and part of the output, or all the output, can be
 * missing because of I/O errors.
 *
 * When the function returns C_ERR and if 'error' is not NULL, the
 * integer pointed by 'error' is set to the value of errno just after the I/O
 * error. */
int rdbSaveRio(int req, rio *rdb, int *error, int rdbflags, rdbSaveInfo *rsi) {
    char magic[10]; // REDIS+rdb_version
    uint64_t cksum;
    long key_counter = 0;
    int j;

    if (server.rdb_checksum)    // 设置使用校验和的情况下，设置该函数指针
        rdb->update_cksum = rioGenericUpdateChecksum;

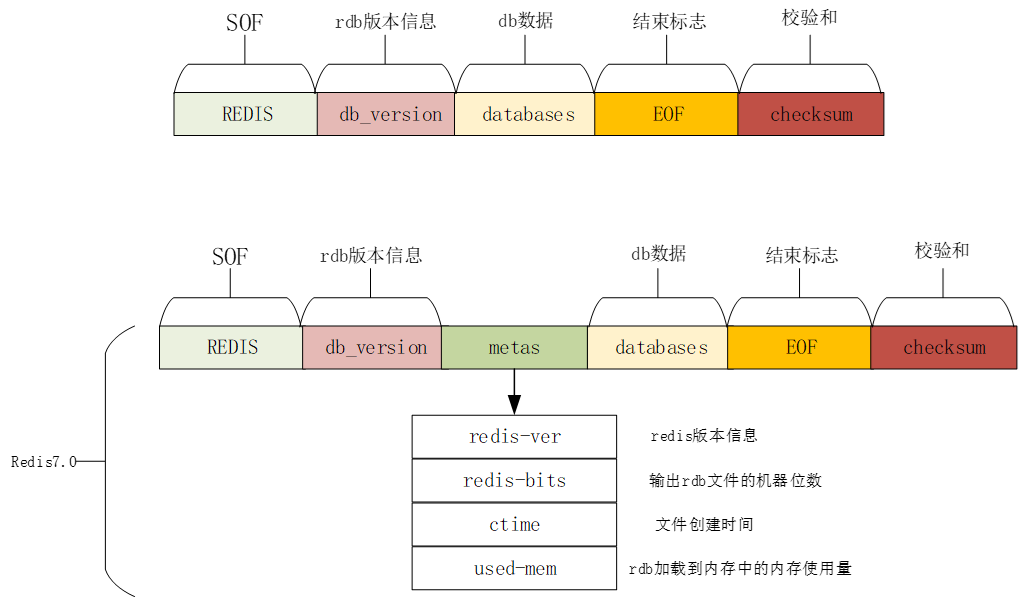

    // 1. 写入 REDIS+rdb_version
    snprintf(magic,sizeof(magic),"REDIS%04d",RDB_VERSION);
    if (rdbWriteRaw(rdb,magic,9) == -1) goto werr;
    // 2. 写入kv信息
    if (rdbSaveInfoAuxFields(rdb,rdbflags,rsi) == -1) goto werr;
    if (!(req & SLAVE_REQ_RDB_EXCLUDE_DATA) && rdbSaveModulesAux(rdb, REDISMODULE_AUX_BEFORE_RDB) == -1) goto werr;

    /* save functions */
    if (!(req & SLAVE_REQ_RDB_EXCLUDE_FUNCTIONS) && rdbSaveFunctions(rdb) == -1) goto werr;

    /* save all databases, skip this if we're in functions-only mode */

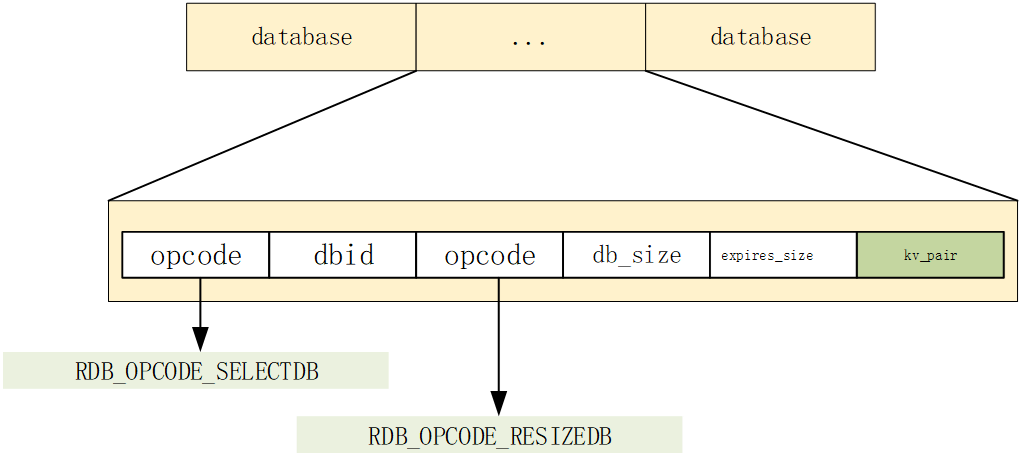

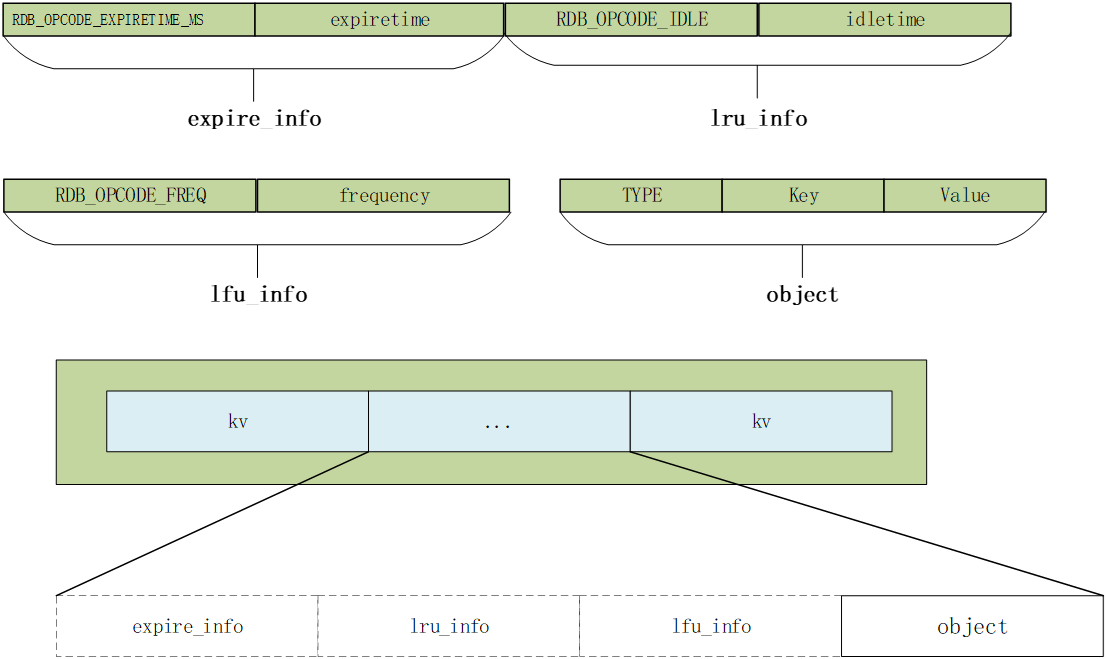

    // 3.写入每个数据库的数据
    if (!(req & SLAVE_REQ_RDB_EXCLUDE_DATA)) {
        for (j = 0; j < server.dbnum; j++) {
            if (rdbSaveDb(rdb, j, rdbflags, &key_counter) == -1) goto werr;
        }
    }

    if (!(req & SLAVE_REQ_RDB_EXCLUDE_DATA) && rdbSaveModulesAux(rdb, REDISMODULE_AUX_AFTER_RDB) == -1) goto werr;

    /* EOF opcode */
    // 4. 写入EOF
    if (rdbSaveType(rdb,RDB_OPCODE_EOF) == -1) goto werr;

    /* CRC64 checksum. It will be zero if checksum computation is disabled, the
     * loading code skips the check in this case. */
    cksum = rdb->cksum;
    // 5. 写入check_sum
    memrev64ifbe(&cksum);
    if (rioWrite(rdb,&cksum,8) == 0) goto werr;
    return C_OK;

werr:
    if (error) *error = errno;
    return C_ERR;
}
